GROUND MOUNTING STRUCTURES

The Foundation of Utility-Scale Solar Farms

Key Featured

Other Services

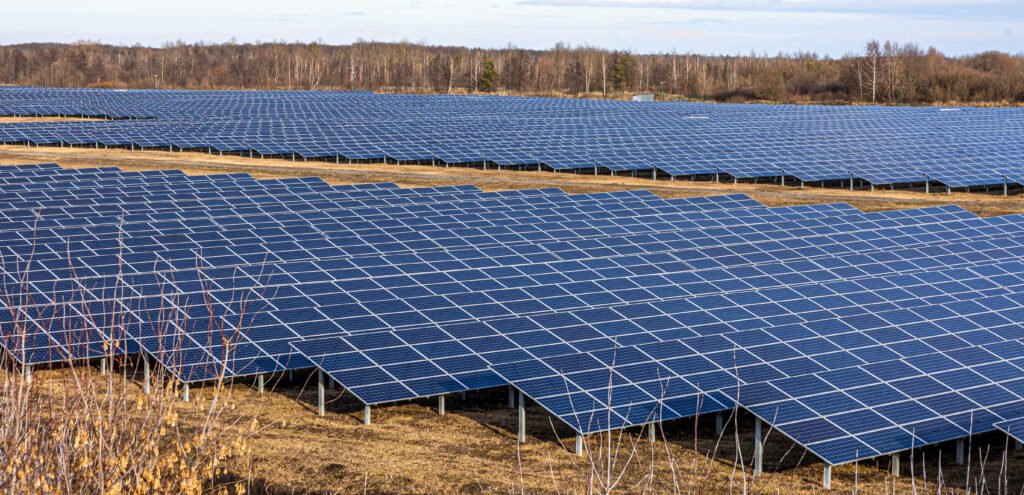

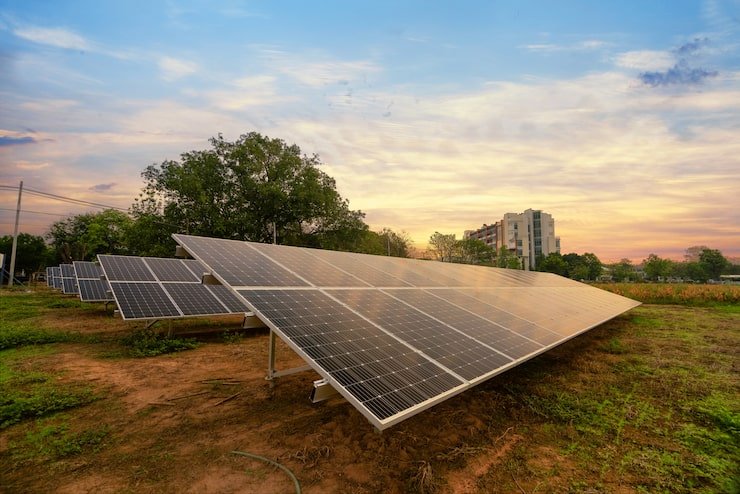

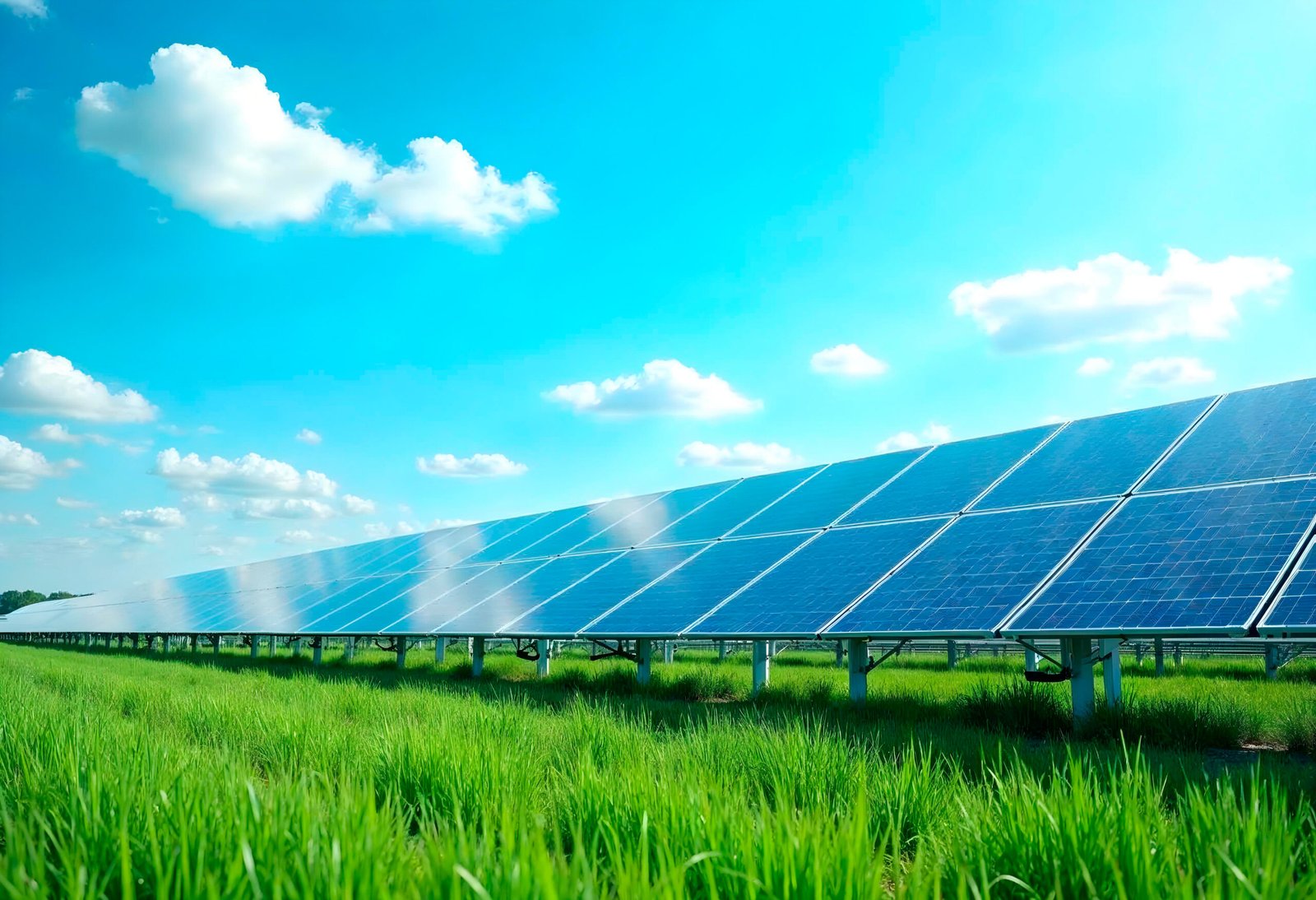

1.1 Fixed Tilt Systems

Ideal for: Large-scale solar farms, open land installations

Key Specifications:

Tilt Angles: 15° to 30° (optimized for latitude)
Material: IS 2062 Grade Steel
Coating: Hot-dip galvanized (120-150 microns)
Span: 3-4 meters between supports
Foundation: Driven piles, concrete blocks, or ground screws

Advantages:

✅ Lowest cost per MW
✅ Simple installation and maintenance
✅ Proven reliability over decades
✅ Minimal moving parts

Applications:

Solar parks > 1MW
Government solar projects
Waste land utilization
Agricultural solar installations

1.2 Seasonal Tilt Adjustable Systems

Ideal for: Medium-scale projects requiring seasonal optimization

Key Specifications:

Adjustment Range: 15° to 55° (manual adjustment)
Adjustment Frequency: 2-4 times per year
Material: IS 2062 with reinforced joints
Operation: Manual with safety locking mechanism

Advantages:

✅ 8-12% higher energy yield vs. fixed tilt
✅ Low maintenance compared to trackers
✅ Manual operation (no power required)
✅ Ideal for seasonal load patterns

Applications:

Industrial captive power plants
Agricultural processing units
Schools and institutions
Seasonal manufacturing facilities

1.3 Single-Axis Tracking Systems

Ideal for: Maximizing energy yield in limited space

Key Specifications:

Tracking Accuracy: ±0.5°
Drive System: AC/DC motor with gearbox
Control: PLC-based with weather sensors
Wind Stow: Automatic at 60 km/hr
Rotation: ±45° from horizontal

Technical Features:

Backlash: <0.1°
Power Consumption: 0.3-0.5% of generated energy
Communication: RS485/Modbus/Ethernet
Backup: Manual override available

Advantages:

✅ 18-25% higher yield vs. fixed tilt
✅ ROI improvement of 1.5-2 years
✅ Automatic weather protection
✅ Remote monitoring capability

1.4 Dual-Axis Tracking Systems

Ideal for: Research institutions, high-value installations

Key Specifications:

Azimuth Rotation: 360°
Elevation Range: 0° to 90°
Accuracy: ±0.25° both axes
Control: Advanced PLC with GPS synchronization

Advantages:

✅ 30-40% higher yield vs. fixed tilt
✅ Perfect for concentrated PV
✅ Ideal for variable terrain
✅ Maximum energy in winter months
